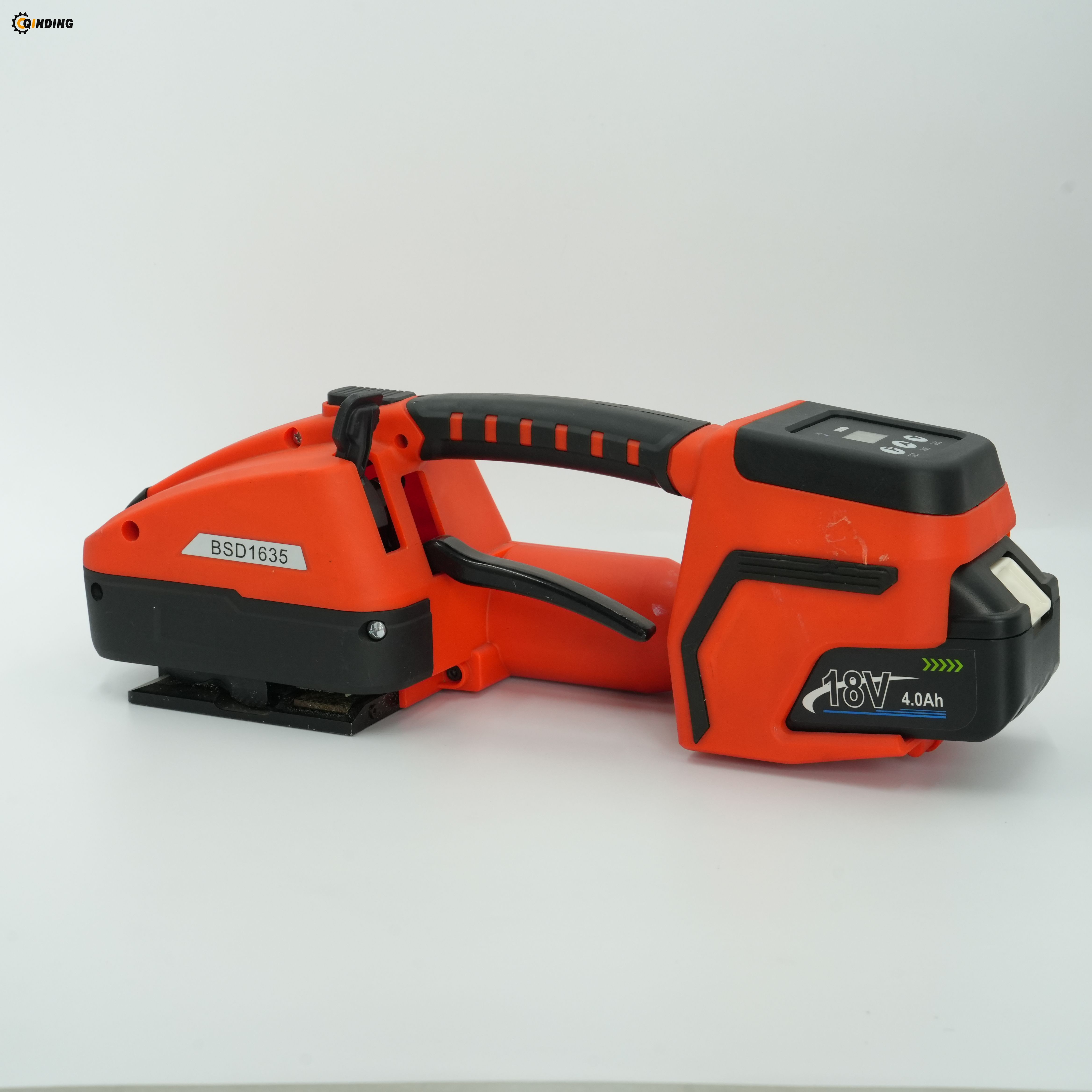

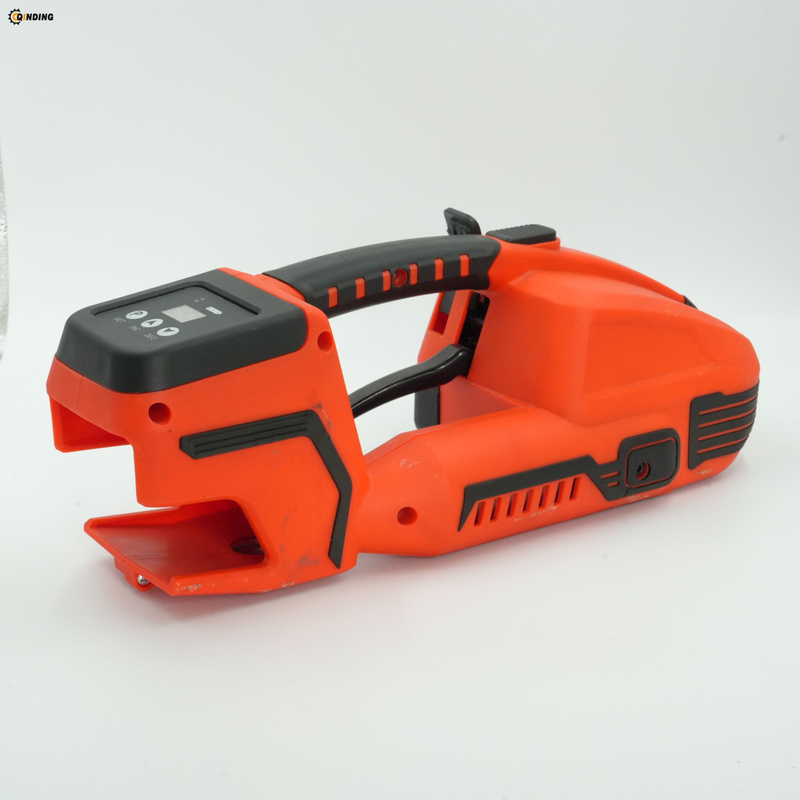

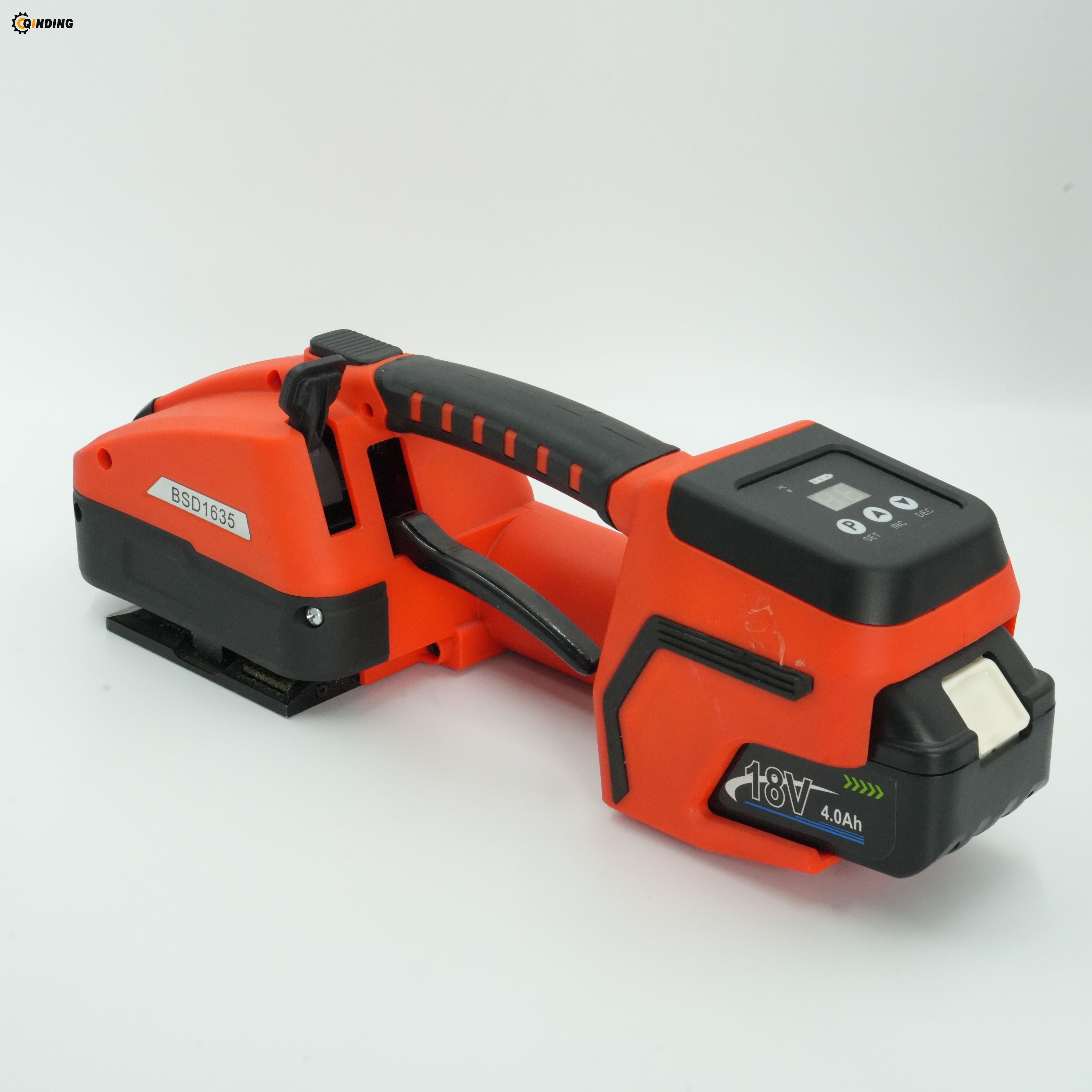

Automatic Strapping Machine - Electric Auto Banding Machine with Battery Powered for PP PET Strapping for 1/2’’ - 5/8’’ PP PET Straps

The Electric Strapping Machine uses the principle of friction heat fusion to weld two straps together. Designed for high-efficiency and secure packaging, this machine is ideal for industries such as logistics, manufacturing, and e-commerce. With its powerful performance and user-friendly operation, it meets the growing market demand for improved packaging efficiency and reliability in both small and large-scale operations.
Easily cope with various packaging scenarios. For example paper industry, aluminum industry, steel industry, wood, wooden box packaging, chemical fiber, cotton spinning, chemical industry, metal products, and other industries.

Applications

Features

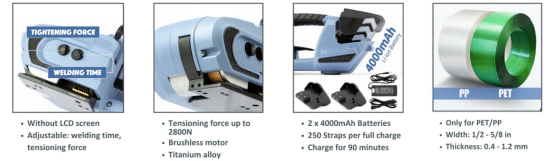

· Fully Automatic:Save time and labor with a machine that combines tensioning, cutting, and banding—no need for buckles or seals, improving efficiency.

· 2 x 4000mAh Batteries:Two rechargeable lithium batteries, capable of completing 250 strappings per charge. Each charges for only 90 minutes.

· For PP & PET Strapping:Compatible with 1/2-5/8 in(13-16mm) wide, 0.4 to 1.2 mm thick PET (Polyester) and PP (Polypropylene) strapping by replacing the spring and accessories.

· No Need For Buckles:Friction heat fusion welds the straps with 75% of their maximum load-bearing strength, ensuring they won’t break easily, eliminating the need for extra buckles.

· Adjustable:Welding time and tightening force can be easily adjusted via knobs.

· Enhanced Structure:This strapping machine is equipped with a brushless motor and features titanium alloy welding base and wear parts, enhancing efficiency and extending lifespan.

· Packing List:In addition to the main machine, two batteries, the battery charger and the user manual, an additional tool kit will be provided.

More Details

Technical Data

*The values such as Packing Efficiency, Charging Time, and Adhesive Strength are for reference only and may vary in actual use due to various factors, such as the quality of the stra

Precautions

1.Ensure the strap matches the spring installed in the machine

This electric strapping machine comes with a default spring for fusing PET straps . For PP straps, please replace the spring with the one provided. For installation guidance, refer to the video or contact customer service.

2.Optimal welding time

Adjust welding time using the buttons to find the optimal setting before first use. Many factors, such as temperature and strap thickness, can affect the welding time.

3.Clean strap residue on the cutting gear

Avoid damaging the machine and yourself.

4.Strapping jams (LED in red)

If straps get jammed, switch off the power, cut the straps, remove the screws on the left and right panel covers, and clear the straps. Then, check for issues like dislodged lines on the travel switch and replace the micro switch if necessary.

5.Motor not rotating

Press the welding and tensioning buttons to check the motor and micro switch. Replace them if needed.
