Product Description：

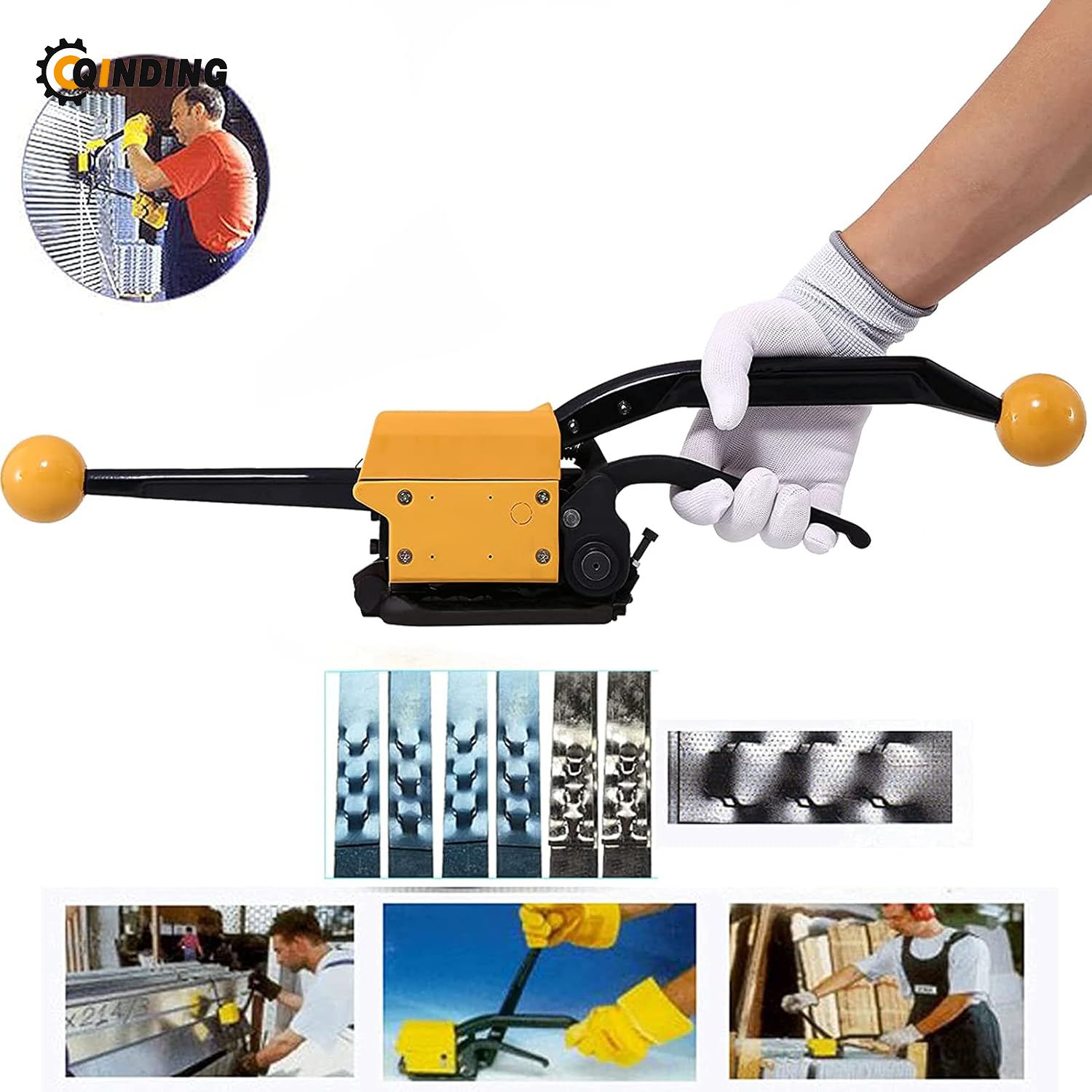

The A333 manual steel strapping tool is a heavy-duty, all-in-one solution designed for seamless, buckle-free steel strapping operations. Engineered for reliability and efficiency, it eliminates the need for additional seals or buckles, delivering secure, high-tension joints for steel straps in industrial packaging, logistics, and heavy-duty bundling applications. This complete set includes the tool, steel strapping coils, and essential accessories, making it ready for immediate use.
Product Advantages：
Heavy-Duty Construction
Built with high-strength alloy steel components and a durable, corrosion-resistant housing. The robust design withstands rigorous daily use in warehouses, factories, and shipping yards, ensuring long service life with minimal maintenance.
Ergonomic Operation
Features ergonomic, non-slip handles with large, comfortable grips. The balanced mechanism reduces operator fatigue during continuous use, while the smooth tensioning, sealing, and cutting process is completed in simple, intuitive steps.
Versatile Compatibility
Ideal suitable for 1/2''(13mm) 5/8''(16mm) 3/4''(19mm). Machine usually come with 3/4'' (19mm) strap setting. If you need to pack different widths, please replace the gasket firstly. It is suitable for securing heavy loads such as metal coils, lumber, bricks, machinery, and other bulk goods.

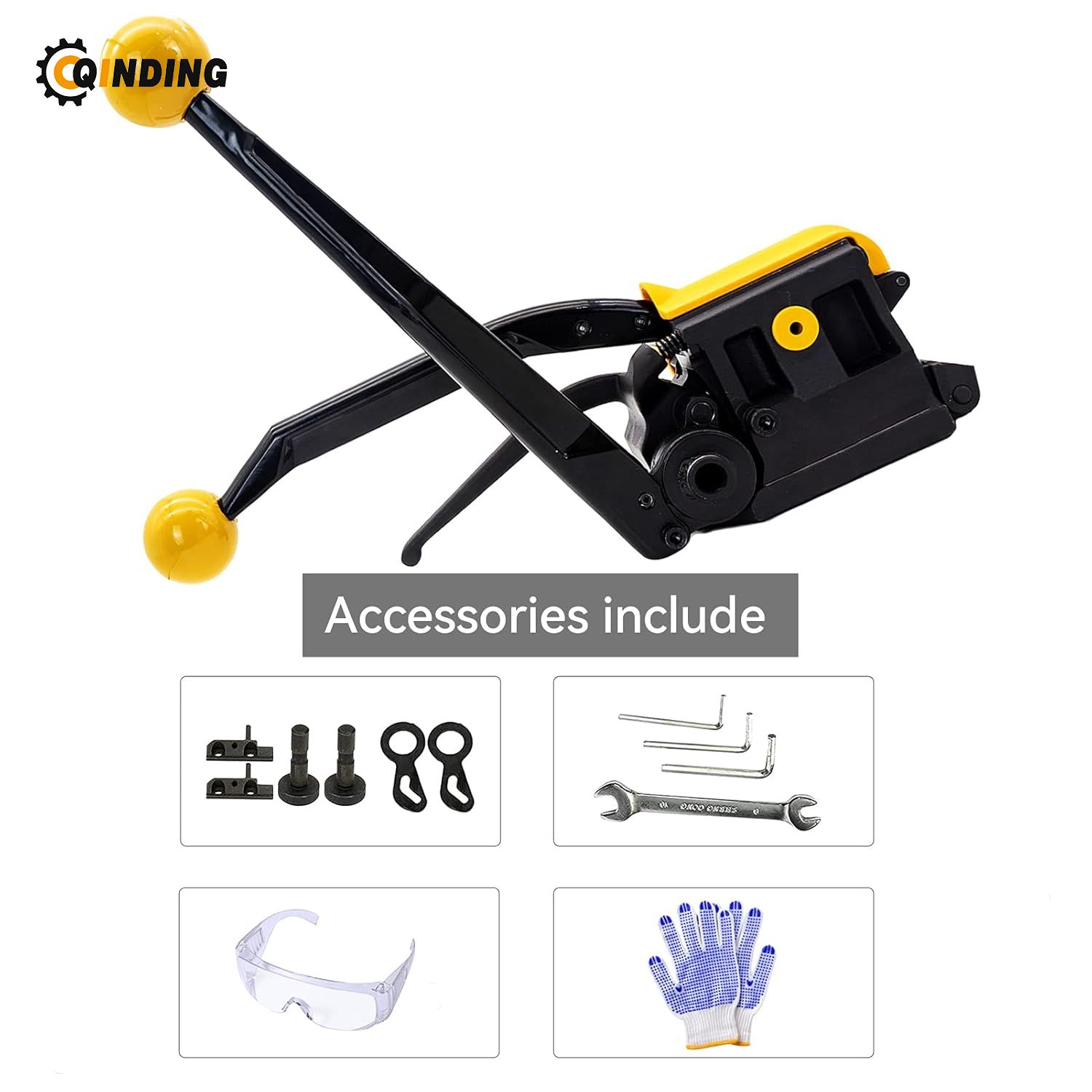

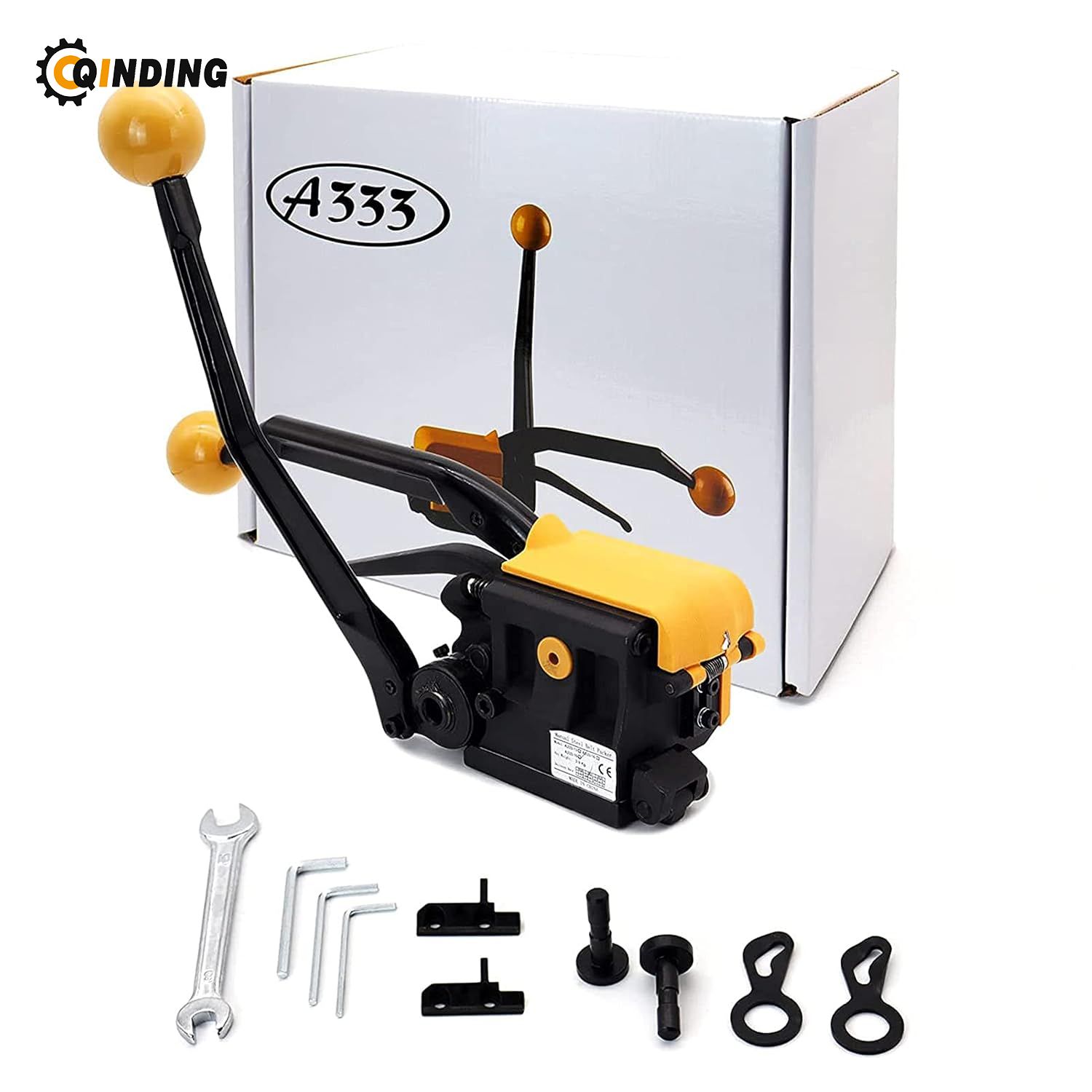

Complete Accessory Kit
The set includes all necessary tools for setup, adjustment, and maintenance: an open-end wrench, hex key set, replacement wear parts, and auxiliary components. No additional purchases are required to start using the tool.
·Buckle-Free Joint Technology
Utilizes friction welding to create strong, permanent joints without requiring metal buckles or seals. This reduces material costs, simplifies operations, and eliminates the risk of loose or failed connections.
Technical parameters：
Our stainless steel banding easily finishes the wrapping and strapping, used for strap flat packages (i.e., pallets, bales, crates, cases, stone, wood, steel, aluminum bars, and other various packages).
• Tensile Strengths Ranging: 700-850 N/mm² / 100,000-123,000 psi.
• Tool Length: 387 mm / 15.2"
• Tool Width: 162 mm / 6.4"
• Tool Height: 308 mm / 12.1"
• Tool Weight: 3.9 kg / 8.6 lbs
• Strapping Width: 13-16 mm (1/2"-3/5")
• Strapping Thickness: 0.38-0.58 mm (0.015"-0.023")
• Average Seal Strength: Approx.80%
Application scenarios：
1. Industrial production line: Used for packing large equipment, metal parts and heavy cargo with high tension requirements.
2. Logistics and warehousing: Ideal for pallet packaging, carton sealing and container loading to keep goods stable.
3. Export transportation: Suitable for long‑distance shipping to prevent goods from moving or being damaged.
4. Warehouse management: Efficient tool for daily packaging, sorting and storage of various products.

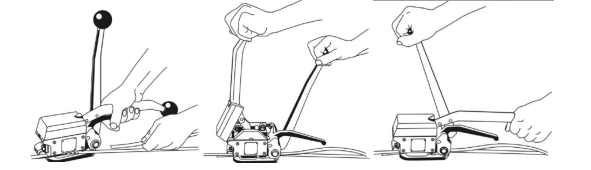

Operation Introduction：
Prep & Load the Strap
Wrap the steel strap around your load, leaving a 20–30cm overlap. Insert the two overlapping strap ends into the tool, with the bottom strap (closer to the load) in the lower slot and the top strap (free end) in the upper slot. Make sure they are flat and parallel.
Tension the Strap (Tighten)
Hold the sealing handle steady with your left hand. Use your right hand to pump the vertical tensioning lever back and forth repeatedly. This will pull the strap tight around the load until you reach the desired tension.
Seal & Cut the Strap (Friction Weld)
Once the strap is tight, push the sealing/cutting lever fully forward with your left hand until it stops. This creates a friction-welded joint (no buckles needed) and cuts off the excess strap tail in one motion.
Release the Tool
Lift the tensioning lever up, then slide the tool to the right to disengage it from the strap. Your bundle is now securely packed!
Faq：
Problem 1: What type of strapping material is compatible with this tool?
This tool is specifically designed steel strapping (metal bands), and cannot work with PP or PET plastic straps.
Problem 2: What size strapping should I use?
Metal steel strapping Tool has more accessories, machine usually come with 3/4'' (19mm) strap setting, but it also suitable for 1/2''(13mm)5/8''(16mm), If you need to pack different widths, please replace the gasket firstly.
Problem 3: Is there a specific way to stand while tensioning?
Yes. Do not stand in line with the strap while it is tensioned, as the strap could break.
Problem 4: Can I use any replacement parts for maintenance?
No. Original spare parts must be used exclusively. Using non-original parts will void the warranty and end limited liability.
