Picture a bustling loading dock. A fully loaded pallet of high-value goods is being swiftly moved by a forklift across the facility. Suddenly, the entire load shifts and tips over, scattering expensive inventory across the concrete floor. The culprit is rarely the forklift driver. Instead, the plastic wrap snagged on a single sharp wooden pallet corner. That tiny snag caused a catastrophic tear that instantly compromised the containment force.
This common warehouse nightmare highlights a fundamental truth in logistics. Not all plastic wraps are created equal. When securing irregularly shaped loads, a film's ability to withstand poking, prodding, and tearing is the ultimate defining factor between safe product delivery and costly inventory loss. To prevent these mechanical failures, the packaging industry relies heavily on precise penetration threshold testing.
Understanding exactly which puncture test suits PE stretch film enables warehouse managers and packaging engineers to select the optimal materials for securing critical loads. This comprehensive guide breaks down the exact testing standards used in laboratories today. Furthermore, it explains how these metrics apply to real-world warehouse operations and provides actionable insights on choosing the right film specifications for your specific shipping requirements.
ASTM D5748 is the recognized industry standard test for measuring the protrusion puncture resistance of PE stretch film.
Tear resilience metrics vary significantly based on the film gauge, specific resin formulation, and whether the manufacturing process utilized cast or blown extrusion.
Understanding the structural difference between PE stretch film and shrink wrap is crucial. Their testing methodologies and practical applications serve completely different purposes.
Real-world application dictates performance. Utilizing a high-quality dispenser optimizes film tension and drastically reduces the risk of operator-induced damage.
Leading manufacturers rely on rigorous laboratory testing to guarantee load stability, consistency, and safety for B2B consumers.

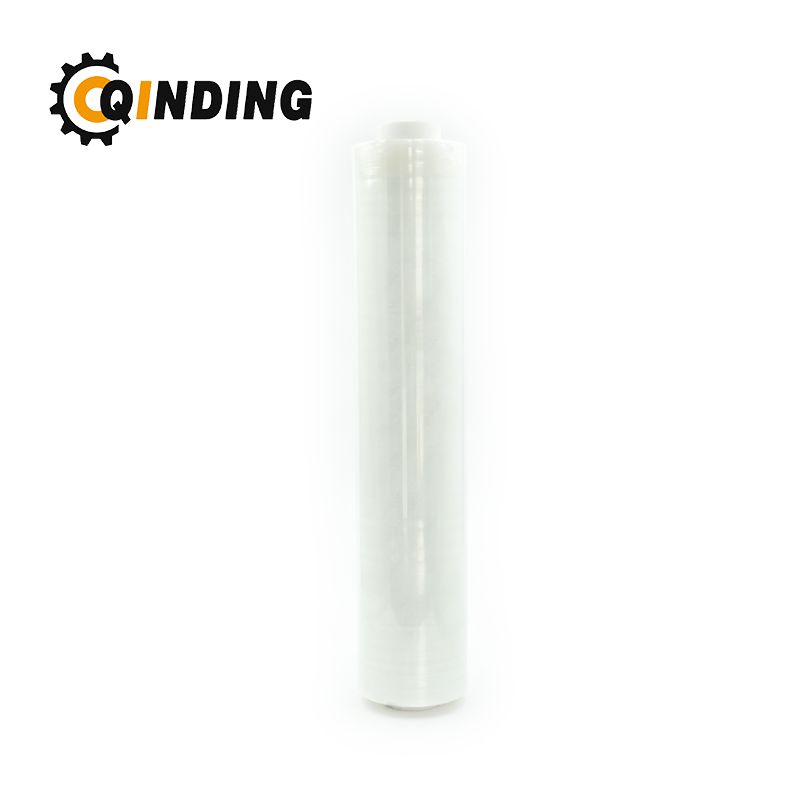

Polyethylene stretch film, specifically Linear Low-Density Polyethylene, is a highly elastic plastic film commonly utilized to unitize and secure items on pallets for transportation and storage. Its primary mechanical advantage relies on stretch memory. This is the material's natural tendency to try and return to its original size after being elongated. This constant contraction creates a tight, binding web around the load.
In the context of packaging engineering, puncture resistance refers to the maximum physical force or energy a film can absorb before it ruptures when pressed against a sharp, jagged, or blunt object. Importantly, this is not merely a question of thickness. It involves the molecular structure of the polyethylene itself. When a protruding object presses against the film, the material must stretch and distribute that localized stress across a wider surface area. If the localized tension exceeds the polymer's yield strength and elongation limits, a puncture occurs. This often leads to a rapidly propagating tear.
Load failure is an exceptionally expensive operational inefficiency. Choosing the correct Package material with adequate structural integrity directly prevents product damage during transit. Furthermore, it significantly reduces material waste. Warehouse workers often double-wrap or triple-wrap pallets if they lack confidence in a thin film's strength. This leads to excessive plastic consumption. Optimizing your film tear resilience ensures you use exactly the right amount of plastic, safeguarding both your profit margins and workplace safety. For example, utilizing a standard 15-inch by 1000ft roll with built-in handles can streamline manual wrapping while ensuring consistent tension.
The global packaging sector is undergoing a massive transformation driven by sustainability mandates. Today, warehouse managers are under immense pressure to reduce plastic waste without compromising load security. This has accelerated the trend of down-gauging, which means transitioning to ultra-thin films that offer the same structural integrity as older, thicker wraps.
Specifically, chemical engineers are now utilizing advanced metallocene resins and multi-layer co-extrusion technology. Modern stretch films often consist of 33 to 55 microscopic layers. These intersecting layers act like plywood, distributing localized stress across a much wider area. Because these films are thinner, validating their strength through standardized puncture testing is more critical than ever. Buyers no longer evaluate quality based purely on thickness. They demand empirical data to prove these eco-friendly nano-films can survive the harsh realities of a modern supply chain.
For industrial buyers, packaging is a critical component of the supply chain infrastructure. It is never just an afterthought. Reputable Packaging material Manufacturers invest heavily in controlled laboratory testing to provide empirical evidence of their product reliability. When a B2B procurement manager purchases a pallet of stretch wrap, they are essentially buying a guaranteed containment force. Rigorous laboratory testing ensures that the film will perform exactly as specified on the technical data sheet. This moves the purchasing decision from guesswork to data-driven engineering.
Manufacturing plastic film involves complex, fluctuating variables. These include extrusion temperature, resin blending ratios, and ambient cooling rates. Consequently, puncture testing acts as a strict quality control measure. It guarantees that a roll of 80-gauge film purchased during the winter exhibits the exact same elongation properties as a roll purchased in the heat of summer. This consistency prevents unexpected load failures on the warehouse floor.
When evaluating the durability of PE stretch film, engineers rely on specific testing protocols established by the American Society for Testing and Materials. While several tests exist within the industry, they measure completely different types of impact and stress.
This is the definitive and most suitable test for PE stretch film. ASTM D5748 is specifically designed to simulate the slow, steady pressure that wrap experiences when stretched over sharp pallet corners. It measures the resistance of a film to the slow-rate penetration of a probe.
During the test, a piece of stretch film is securely clamped in a specialized apparatus. A testing machine then slowly drives a standardized, Teflon-coated, pear-shaped probe into the center of the film at a constant crosshead speed, typically 10 inches per minute, until the material finally ruptures. The machine records the peak force, which is the maximum weight required to break the film, and the elongation at break, indicating how far the film stretched outward before giving way. This perfectly mimics the real-world scenario of a pallet load shifting slowly against a sharp edge during a bumpy truck ride.
In addition to specific puncture metrics, ASTM D4649 serves as a comprehensive guide that evaluates overall wrapping performance. It incorporates puncture resistance but places it within the broader context of load containment, cling properties, and stress retention over time. This standard is highly useful for determining how a film performs once it is actually applied to a pallet in a dynamic environment.
In contrast to slow protrusion, the Dart Drop test measures high-speed, dynamic impact resistance. A weighted dart is dropped from a specific height onto a clamped piece of film to determine the energy required to tear it. While highly valuable for agricultural films or heavy-duty construction bags, it is generally less relevant for pallet stretch film. Warehouse punctures rarely happen from high-speed falling projectiles. They almost exclusively occur from the steady friction and pressure mimicked by ASTM D5748.
Test Standard | Primary Measurement Focus | Applicability to PE Stretch Film | Ideal Use Case |
|---|---|---|---|
ASTM D5748 | Slow-rate protrusion force and elongation before rupture. | Very High | Determining resistance to sharp pallet corners and shifting loads. |
ASTM D4649 | Overall load containment and film behavior. | High | Evaluating field performance and wrap cycle efficiency. |
ASTM D1709 | High-speed impact energy absorption via Dart drop. | Low to Moderate | Testing heavy-duty bags or construction films against falling debris. |
Understanding laboratory data is only useful if it seamlessly translates to warehouse efficiency. Here is how to apply these technical metrics to your daily logistics operations.
Packaging engineers categorize pallets into three distinct load profiles to determine the necessary film strength.
A-Loads feature a uniform shape, are perfectly stacked, and have no sharp edges, such as identical corrugated cartons. These require only standard puncture resistance.
B-Loads are somewhat irregular with minor protrusions or uneven stacking. These require a film with a higher tear resilience rating to accommodate shifting during transit.
C-Loads are the most challenging profile. These feature highly irregular shapes, sharp exposed edges, and mixed products like metal parts, machinery, or jagged wooden crates. C-loads demand premium, highly puncture-resistant film formulated with advanced metallocene additives for maximum durability.
Imagine an operator at the end of a grueling 10-hour shift. Fatigue inevitably leads to sloppy, uneven wrapping. Human error is a leading cause of film punctures. When wrapping manually, operators often pull unevenly, creating thin weak spots that tear instantly against corners. Introducing a high-quality Stretch Film Dispenser is a vital operational upgrade. A commercial-grade dispenser maintains consistent, even tension control. This prevents the sudden jerking motions that cause micro-tears, thereby preserving the film's inherent structural integrity.
A common point of confusion in packaging procurement is the distinction between stretch film and shrink film. Their physical behaviors, application methods, and puncture resistance profiles are fundamentally different.
PE stretch film is applied cold. It is mechanically stretched around a pallet, utilizing physical tension to hold items together. Conversely, Shrink Wrap is draped loosely over a product and then exposed to intense heat via a heat gun or tunnel. The thermal reaction causes the polymers to shrink tightly, conforming to the exact shape of the underlying object.
Once heated and cooled, shrink film becomes relatively rigid, providing a hard outer shell that is highly resistant to initial blunt impacts. However, it is also inherently brittle. If a puncture does occur, the tear can propagate rapidly across the entire package surface. In contrast, PE stretch film remains soft, flexible, and highly elastic. It relies on its ability to yield and stretch over a sharp object to prevent the initial puncture from occurring. Even if a minor micro-tear happens, the cling and elasticity of the surrounding film often prevent the tear from spreading.
Historically, there has been a direct correlation between film thickness and puncture resistance. A standard 80-gauge film will naturally resist tearing better than a 47-gauge pre-stretched film. However, simply buying thicker film is no longer the most cost-effective solution, as advancements in polymer science have shifted this paradigm entirely.
The manufacturing process heavily dictates a film's durability. Blown film is created by blowing air into an extruded plastic tube. This process aligns the polymer chains in multiple directions. Consequently, blown film is significantly tougher, offering superior tear and puncture resistance. The trade-off is that it is noisier as it unwinds and possesses less optical clarity.
Cast film is extruded over chilled rollers for rapid cooling. It is extremely clear, unwinds quietly, and is easier to stretch. Historically, it had lower puncture resistance than blown film, though modern chemical additives have closed this performance gap considerably.
Even the highest-rated, lab-tested film can fail if applied poorly or subjected to extreme, avoidable hazards. Implementing strict warehouse best practices ensures optimal load containment.
Train your warehouse staff to visually inspect wooden pallets prior to applying any film. Protruding nail heads, massive splinters, or broken deck boards act like miniature daggers against tensioned plastic. Taking five seconds to hammer down these hazards eliminates the primary cause of bottom-layer punctures.
Technique is just as critical as material selection. Standardize your facility's wrapping protocol. Operators should always start by tying the film securely to the base of the pallet to lock the load to the wood. Maintain a minimum 50 percent overlap as you spiral upward. This overlapping technique effectively doubles the film gauge across the entire load, creating a reinforced web that exponentially increases the overall puncture resistance of the finished unit.
ASTM D5748 stands as the most suitable and accurate puncture test for PE stretch film because it perfectly mimics the slow-protrusion hazards found in real-world shipping environments. By understanding these metrics, warehouse managers can transition from guessing to making informed, data-backed packaging decisions.
Looking at laboratory data is only half the battle. Pairing the right film formulation with the correct application equipment is the ultimate key to load security. We encourage you to evaluate your current packaging strategies today to prevent costly shipping damages tomorrow. Equip your team with the right tools, understand your load profiles, and secure your bottom line. For industrial-grade packaging solutions tailored to your specific warehouse needs, explore the comprehensive range of professional materials and dispensers available at Qinding Tools to guarantee your shipments arrive perfectly intact.
While you cannot obtain precise ASTM D5748 measurements without calibrated laboratory equipment, you can perform highly practical field tests. Wrap your most difficult, sharpest pallet and simulate transit movements, such as sudden forklift stops or tight cornering, to visually assess if the film holds up under real-world stress.
Generally speaking, a higher gauge film is inherently thicker and harder to penetrate. However, modern multi-layer nano-films engineered with advanced metallocene resins can achieve significantly higher puncture resistance at much lower gauges than older, single-layer thick films. This allows for massive cost savings and reduced plastic usage.
The act of stretching the film fundamentally alters its mechanical properties. When a machine pre-stretches film by 200 percent or more, it physically thins the material through a process called neckdown. A film that exhibits excellent puncture resistance on the roll may become highly vulnerable if stretched beyond its engineered capacity. Always ensure your film is rated for the specific pre-stretch gear ratio of your wrapping machine.
Dart drop testing ASTM D1709 measures high-speed, dynamic impact, like a heavy object falling onto a plastic bag. Slow puncture testing ASTM D5748 measures slow-rate protrusion, which exactly mimics a sharp pallet corner slowly pressing into the stretch wrap as a load shifts during transit. For pallet wrapping, slow puncture testing is the only truly relevant metric.
If your film tears frequently during manual application, you may be applying excessive tension. Alternatively, the film gauge might be too thin for your specific load profile, or the dispenser itself may have a damaged or sticky tension control brake. Ensure you are accurately matching the film puncture resistance rating to the sharpness of the items you are wrapping.
Yes, reputable industrial packaging manufacturers provide Technical Data Sheets for all their commercial films. These documents explicitly detail specific puncture resistance metrics, usually measured in pounds or Newtons, derived strictly from standard ASTM testing protocols.
